The Story
Description
ClassBIT Engineering is a teaching bundle designed for Engineering (biosignals-based) Classes and Disciplines, e.g. Biomedical Engineering, BioEngineering, Physical Engineering, Electronic Engineering, Computer Engineering, etc. It includes 10 individual biosignals sets fully equipped with different biosensors, including ECG, EMG, EEG, EDA, ACC and accessories.

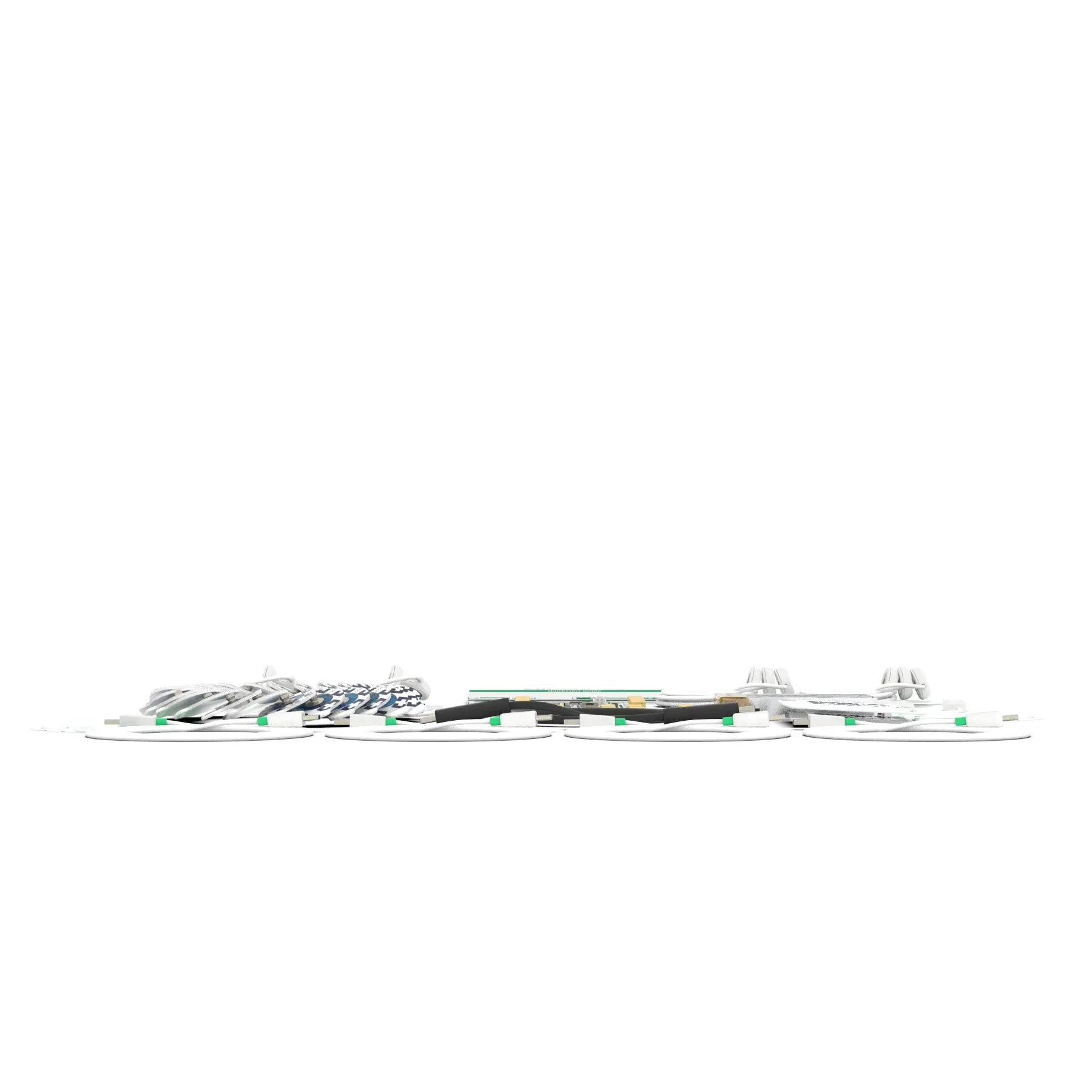

Kit Content
Included Sensors & Actuators:
ClassBIT Engineering contains 10 x Individual Student Kits
Each Individual Student Kit contains the following sensors:
- 1 x BITalino Core BT
- 1 x Battery 700 mAh
- 1 x Electromyography sensor (EMG)
- 1 x Electrocardiography sensor (ECG)
- 1 x Electrodermal Activity sensor (EDA)
- 1 x Electroencephalography sensor (EEG)
- 1 x Accelerometer sensor (ACC)
- 1 x Pushbutton sensor (BTN)
Included Accessories
Each Individual Student Kit contains the following accessories:
- 4 x Sensor Cable
- 2 x 2-Lead Electrode Cable
- 2 x 3-Lead Electrode Cable
- 1 x Micro USB Charging Cable
- 1 x BTH Dongle
- 1 x Electrode Pack
- 2 x Alcohol Swabs
- 1 x Quick Start Guide
Included Software:
- OpenSignals Desktop and Mobile
Optional Software:
- Heart Rate Variability (HRV) Analysis
- Electromyography (EMG) Analysis
- Electrodermal Activity (EDA/GSR) Events
- Respiration Analysis
- Muscle Load Analysis (Fatigue Research)
- Video Synchronization
Sensors that can be included in this kit
- Pre-Assembled Sensors;
- Photoplethysmography (PPG) Sensor,
- Respiration (PZT) Sensor;
- High Definition Temperature (NTC) Sensor;
- Electrooculography (EOG) Sensor;
- Electrogastrography (EGG) Sensor;
- FlexiForce (FSR) Sensor
Specifications
- Analog ports: 6 generic inputs
- Digital Ports: 2 in (1-bit) + 2 out (1-bit)
- Resolution: 4 in (10-bit) + 2 in (6-bit)
- Sampling Rate: 1, 10, 100 or 1000 Hz
- Battery Life: >10h streaming
- Communication: Bluetooth Class II
- Range: Up to 10 m
- MCU: Atmel ATMega328p chipset
- Battery: Built-in 3.7V Li-Po battery charger
- Size: 65 x 5 mm
Downloads
- Datasheet
- User Manual
- Quickstart
- Sample files
- OpenSignals (r)evolution (Windows, macOS, Linux)
PLUX APIs for (r)evolution:
- Python
- Android
- Unity
- Cordova
- APIs Repository
Image Disclaimer
Due to photographic lighting, design techniques and different devices used to view the displayed product, the colour you see may vary slightly from the actual colour of the product. Similarly, other slight variations, like content, may occur between the product displayed (image) and the actual product. Please read Product Description and Kit Content for more accurate information.
