Description
Precision sensor for handgrip, traction, and other heavy duty force sensing applications.

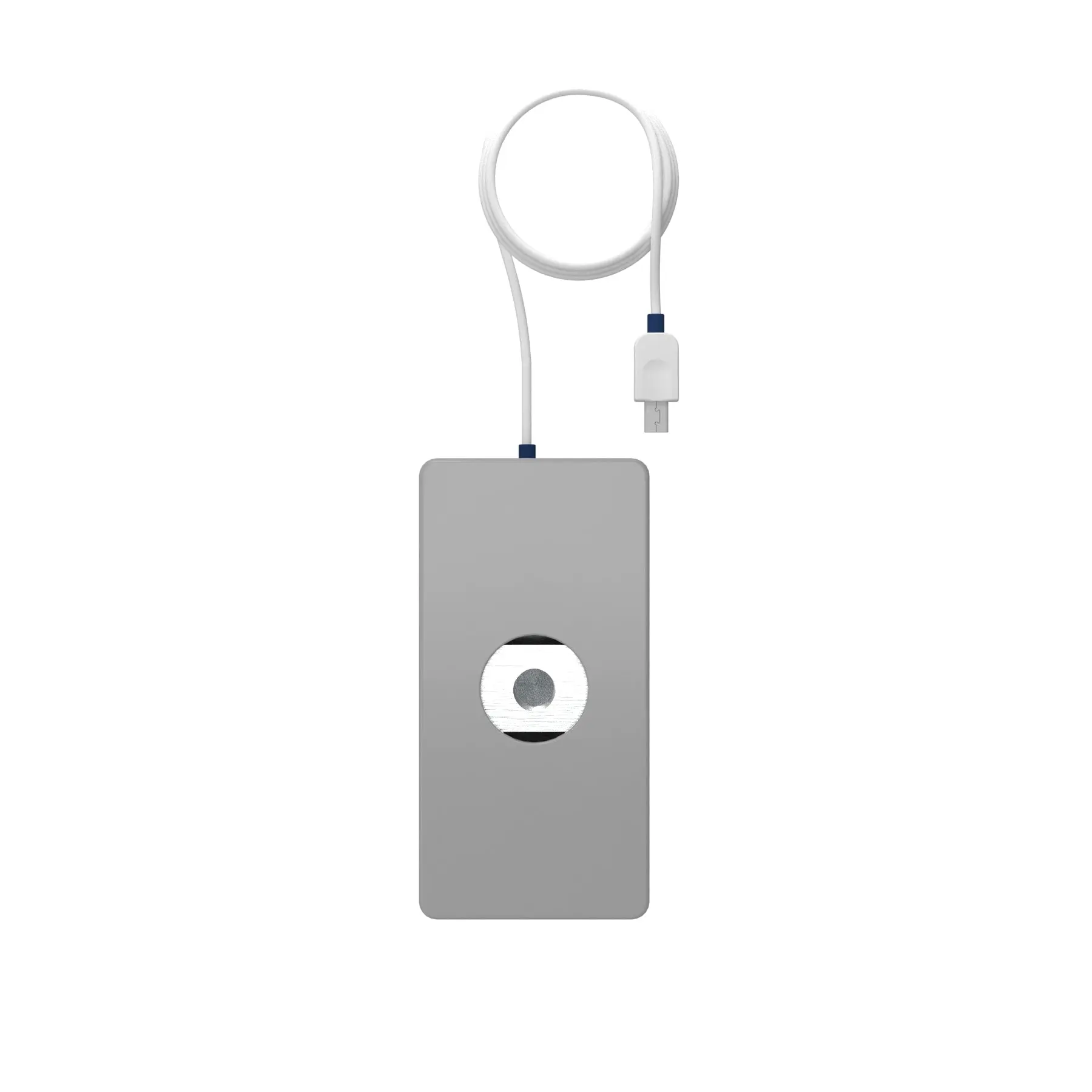

The biosignalsplux Load Cell is a single-axis force sensor designed for continuous force measurements in biomechanics, rehabilitation, ergonomics, and sports research applications.
Its sturdy design and small form-factor are ideal for measuring handgrip forces, traction/compression and similar applications, will enabling an unobtrusive measurement even in the most demanding applications. Together with the available Load Cell range options and accessories, this sensor can be adjusted during the manufacturing process to meet application-specific force range and form-factor requirements.
Not the load cell you need? Contact us for more information on how to use the load cell of your choice on biosignalsplux devices.
Features
- Force measurement
- Tension & compression measurement
- Pre-conditioned analog output
- High signal-to-noise ratio
- Custom ranges available
- Ready-to-use & miniaturized form-factor
Specifications
-
Range: Up to ±110kg
-
Accuracy: ±0.25% (of full scale)
-
Maximum overload: 150% (of full scale)
-
Operation: Tension-compression
-
Type: Strain gage
-
Cable Length: 100cm±0.5cm (customizable; extra costs may apply)
-
Connector Type: UC-E6 (male; must be connected to a biosignalsplux acquisition unit)
Compatibility:
- This sensor is only compatible with biosignalsplux acquisition system
Downloads
- Load Cell Datasheet

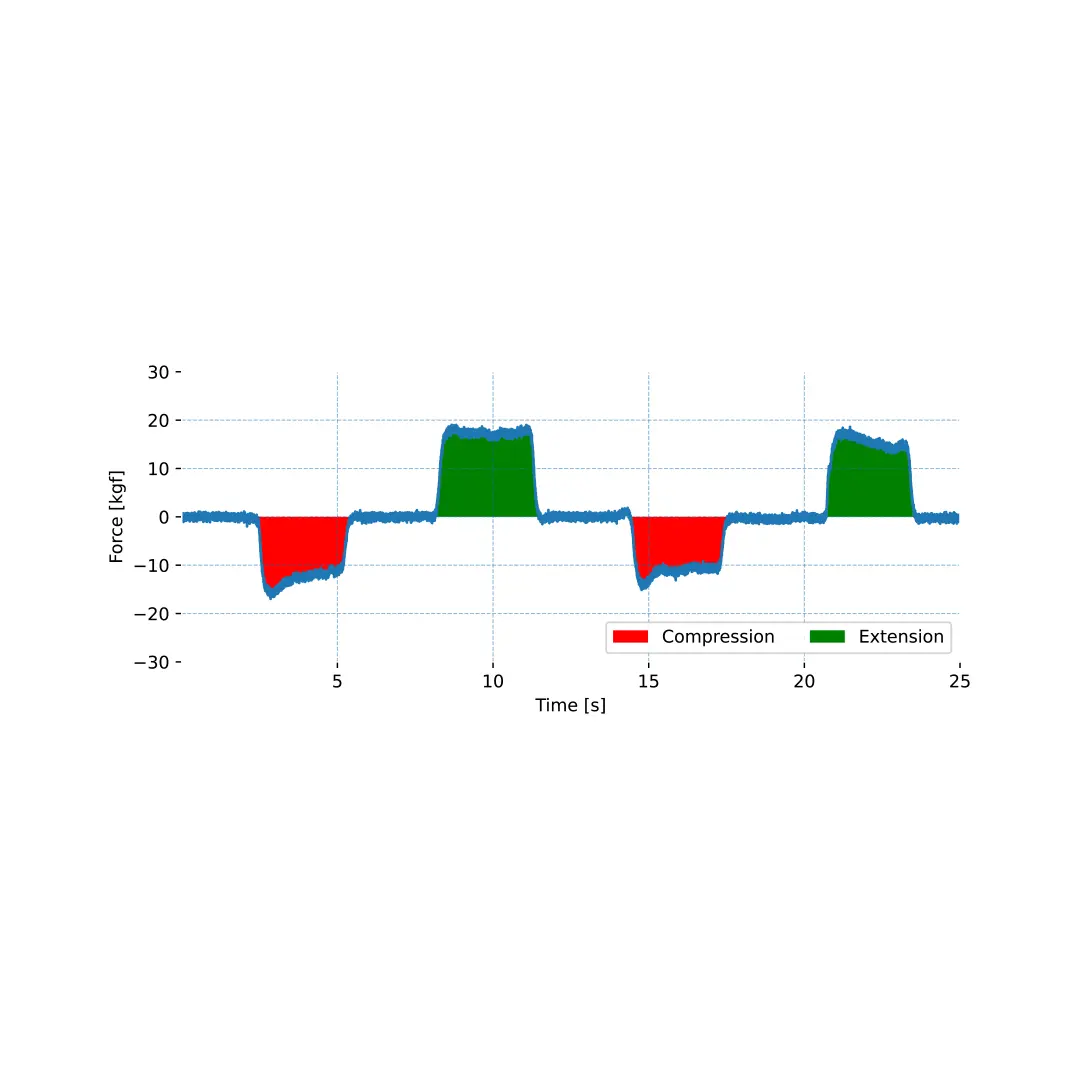

- Signal Sample (.ZIP)
