Electromyography (EMG) Sensor
HomeStore

Electromyography (EMG) Sensor

Electromyography (EMG) Sensor

$82.15

Original: $234.71

-65%
Electromyography (EMG) Sensor—

$234.71

$82.15

The Story

Description

The biosignalsplux Electromyography (EMG) Sensor is designed to monitor muscular activity even in the most extreme conditions. The bipolar configuration is ideal for uncompromised low-noise data acquisition, and the raw data output provides medical-grade data enabling it to be used for advanced and highly accurate biomedical, biomechanics, and sports research, among many other possible applications.

 Features

  • Bipolar differential measurement
  • Pre-conditioned analog output
  • High signal-to-noise ratio
  • Medical-grade raw data output
  • Ready-to-use & miniaturized form-factor

Specifications

  • Gain: 1000
  • Bandwidth: 25-500Hz
  • CMRR: 100dB
  • Range: ±1.5mV (with VCC=3V)
  • Input Impedance: >100GOhm
  • Cable Length: 100cm±0.5cm (customizable; extra costs may apply)
  • Connector Type: UC-E6 (must be connected to a biosignalsplux acqusition unit)
Compatibility:
  • This sensor is only compatible with biosignalsplux acquisition system which is sold separately. Make sure you have one to use it.

Downloads

  • Electromyography (EMG) Sensor Datasheet
  • Electromyography (EMG) Sensor User Manual
  • Electromyography (EMG) Sample Signal (.ZIP)

Electromyography (EMG) Sensor - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

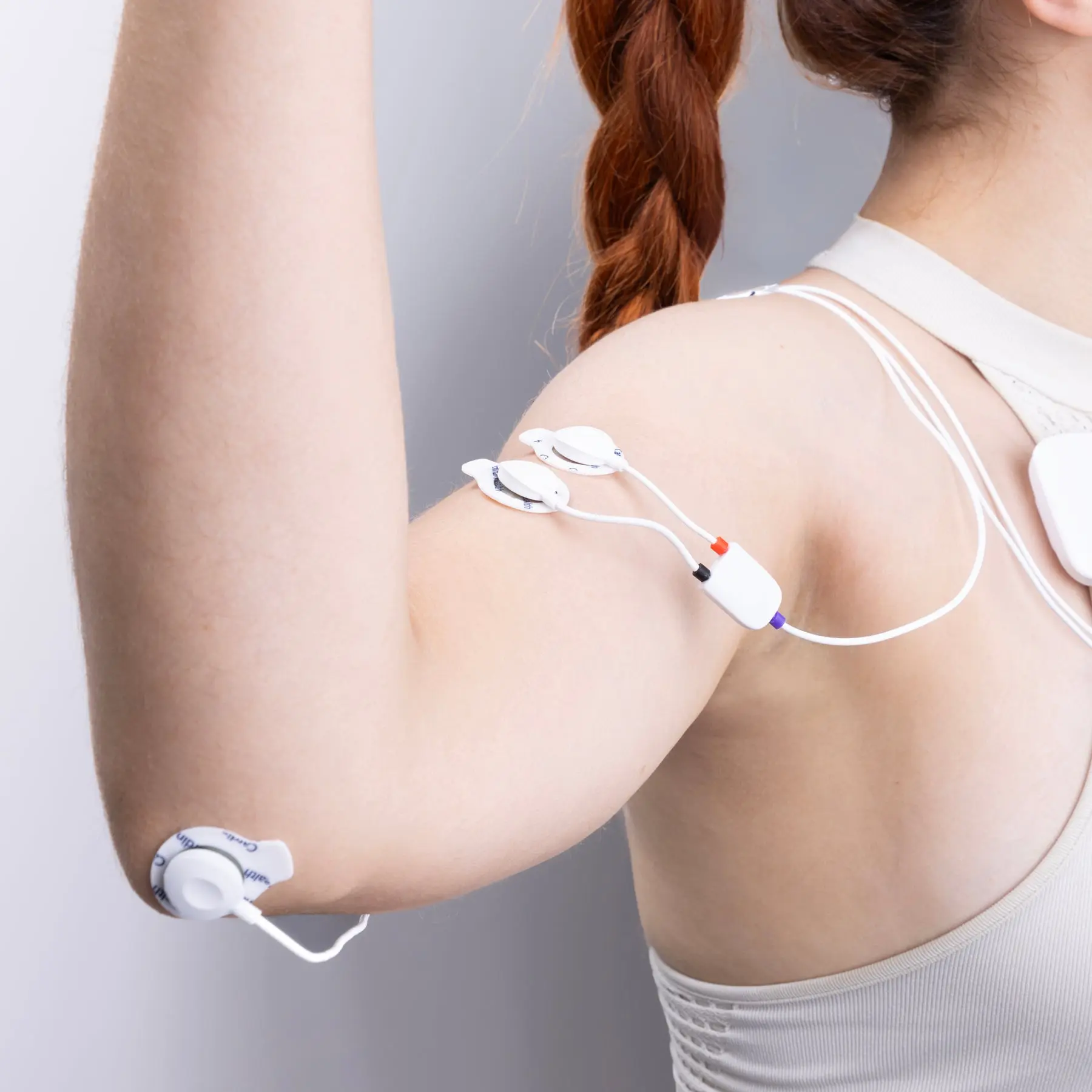

Electromyography (EMG) Sensor - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

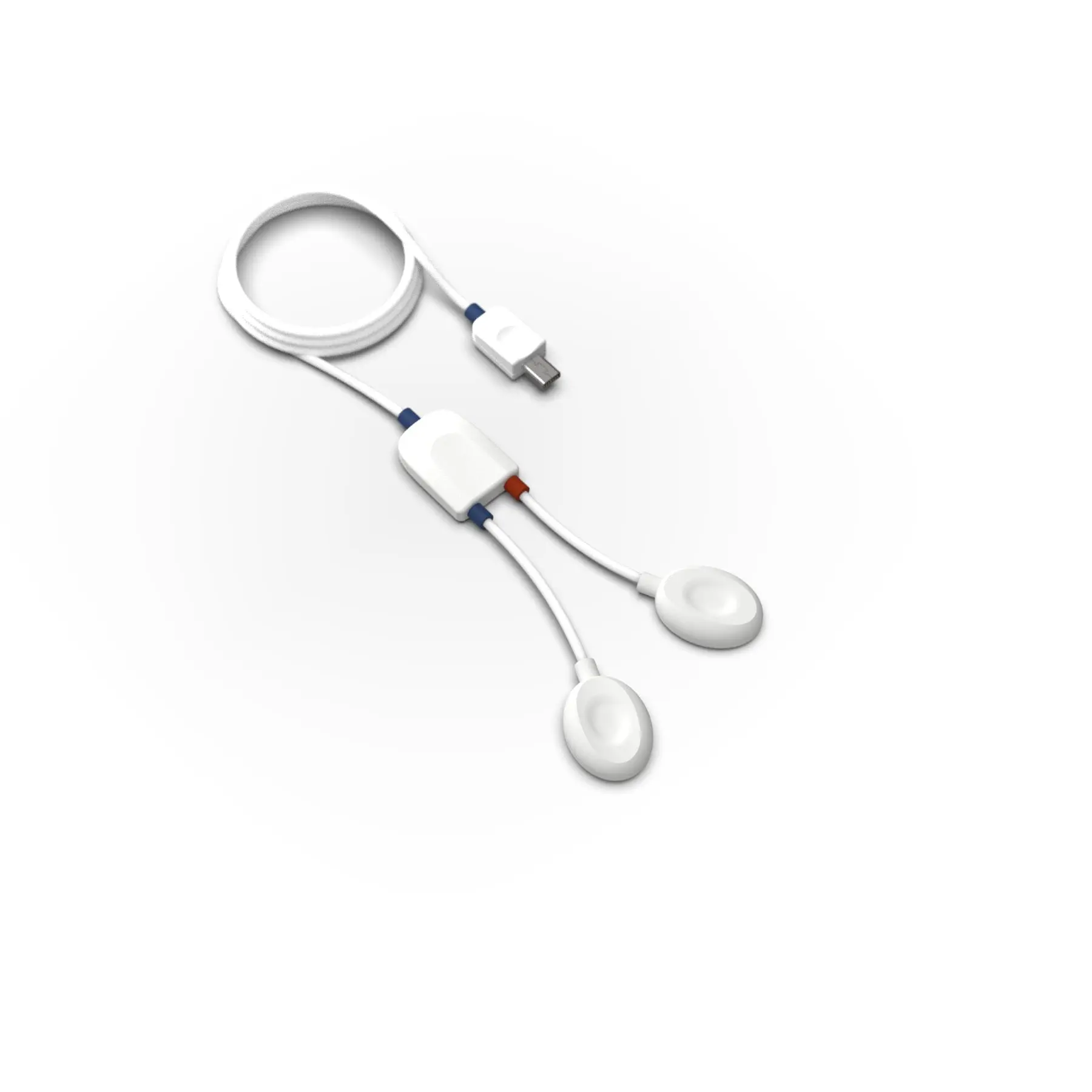

Electromyography (EMG) Sensor - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Electromyography (EMG) Sensor - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

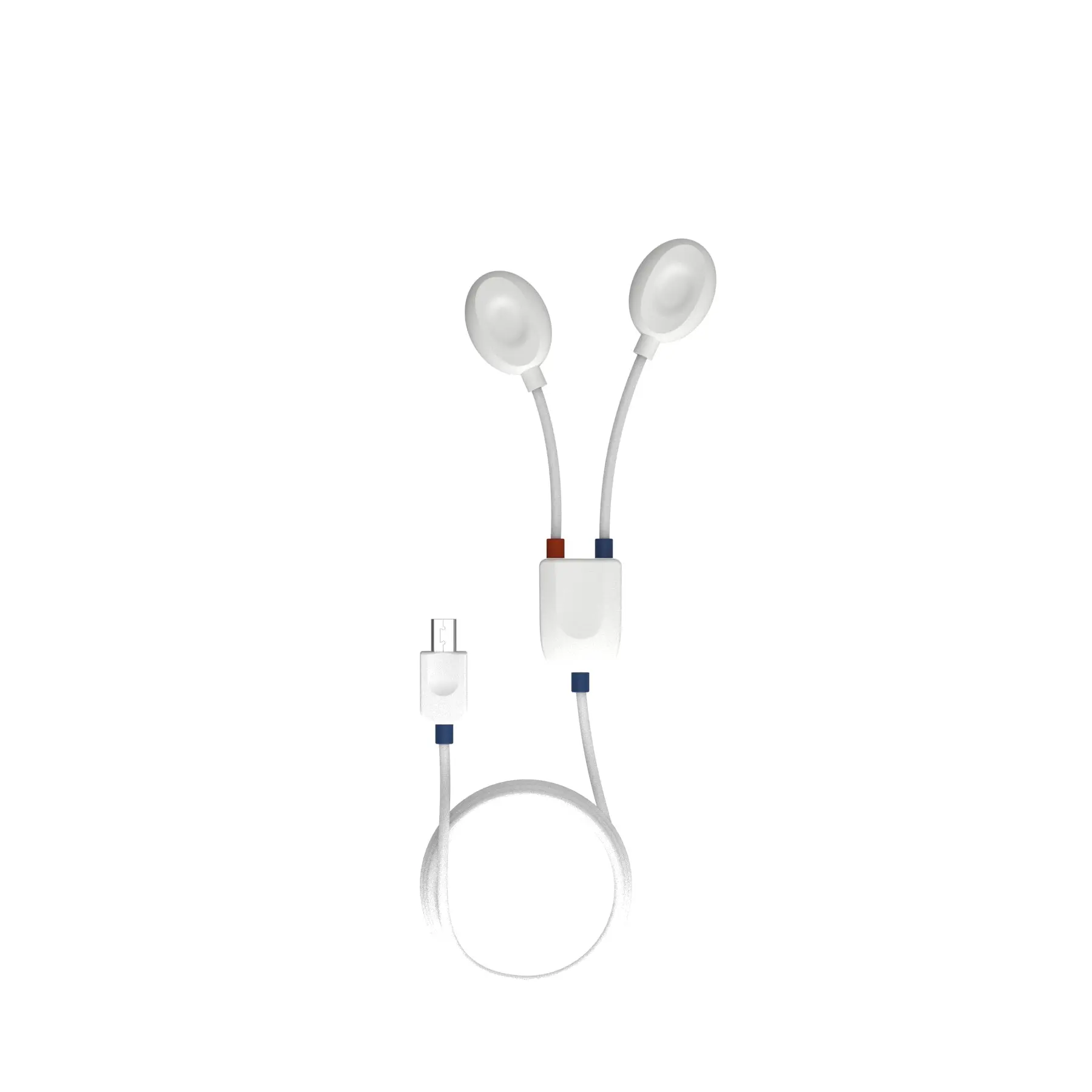

Electromyography (EMG) Sensor - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

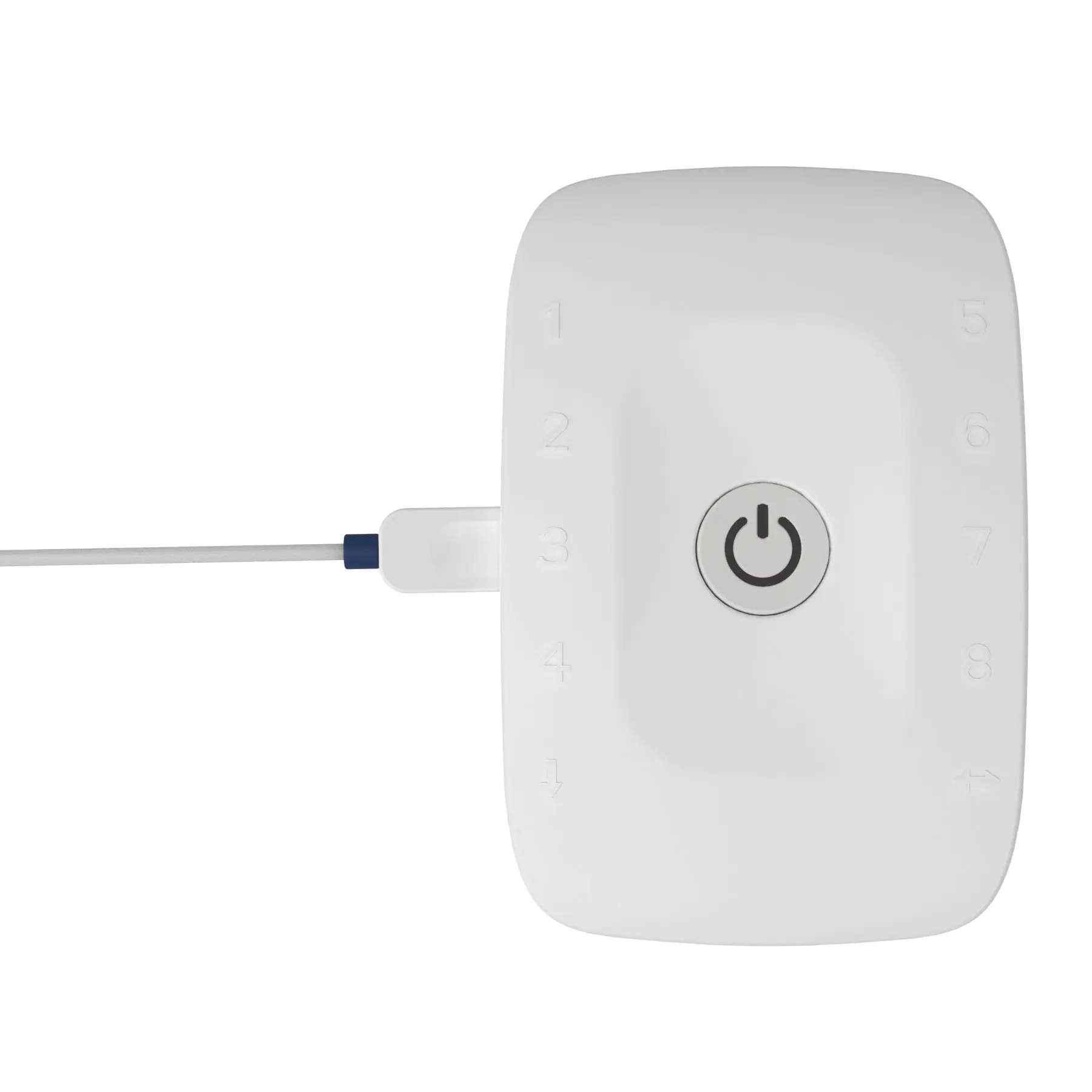

Electromyography (EMG) Sensor - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

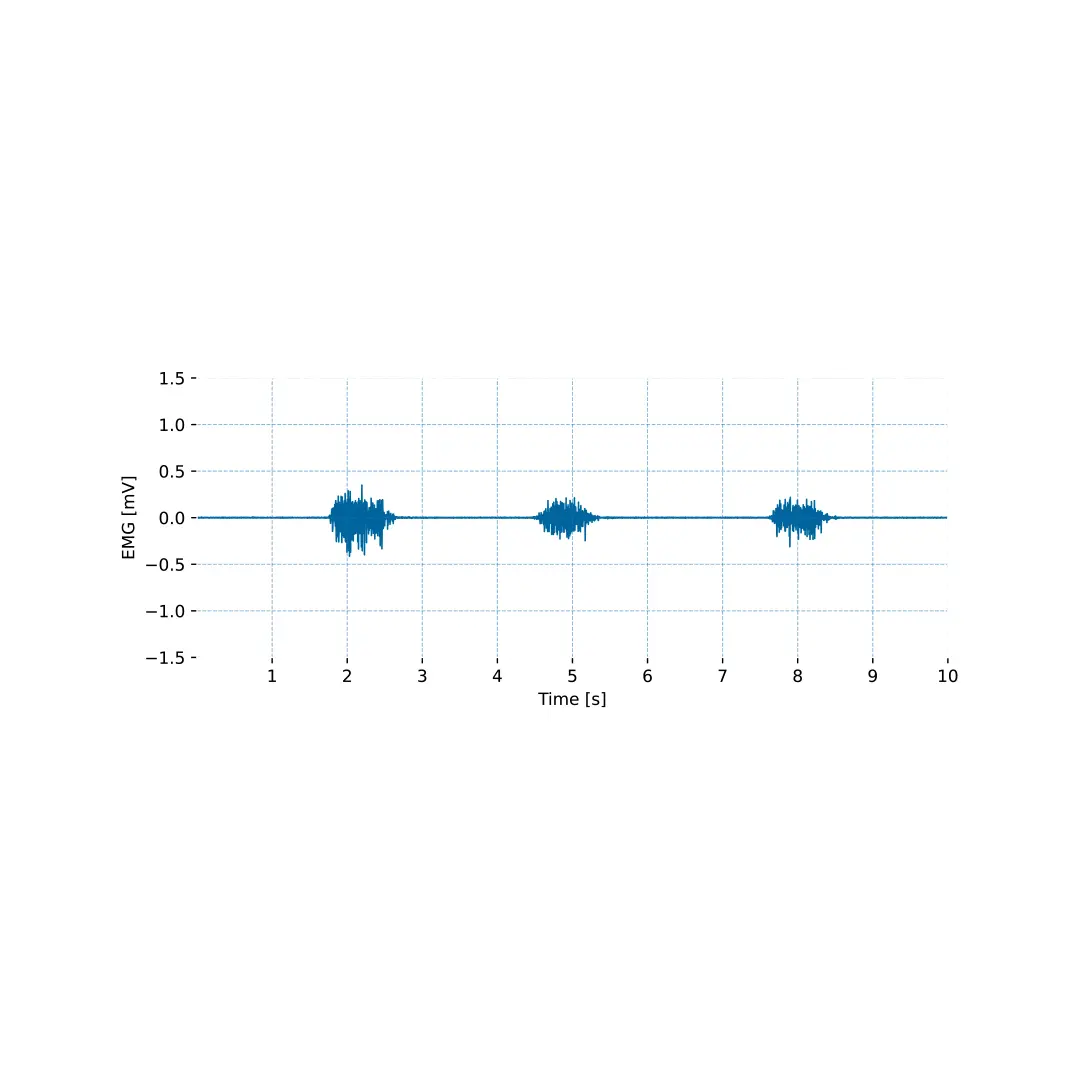

Electromyography (EMG) Sensor - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Description

The biosignalsplux Electromyography (EMG) Sensor is designed to monitor muscular activity even in the most extreme conditions. The bipolar configuration is ideal for uncompromised low-noise data acquisition, and the raw data output provides medical-grade data enabling it to be used for advanced and highly accurate biomedical, biomechanics, and sports research, among many other possible applications.

 Features

  • Bipolar differential measurement
  • Pre-conditioned analog output
  • High signal-to-noise ratio
  • Medical-grade raw data output
  • Ready-to-use & miniaturized form-factor

Specifications

  • Gain: 1000
  • Bandwidth: 25-500Hz
  • CMRR: 100dB
  • Range: ±1.5mV (with VCC=3V)
  • Input Impedance: >100GOhm
  • Cable Length: 100cm±0.5cm (customizable; extra costs may apply)
  • Connector Type: UC-E6 (must be connected to a biosignalsplux acqusition unit)
Compatibility:
  • This sensor is only compatible with biosignalsplux acquisition system which is sold separately. Make sure you have one to use it.

Downloads

  • Electromyography (EMG) Sensor Datasheet
  • Electromyography (EMG) Sensor User Manual
  • Electromyography (EMG) Sample Signal (.ZIP)
